Build Cycle User Guide

https://img.shields.io/badge/GitHub-ts_cycle_build-green.svg https://img.shields.io/badge/Jenkins-ts_cycle_build-green.svg https://img.shields.io/badge/Jira-ts_cycle_build.svg

This page explain how users can build deployable artifacts for the majority of the Vera Rubin Observatory control software. This packages focus on those components that are deployed as docker containers, either as simulators and/or to control real hardware.

The observatory control software build system makes use of the concept of cycle and revision.

Cycle

Tracks the versions of a group of core packages that affect all components.

Revision

Tracks the versions of all the other packages in the system.

Anytime a version of a core package changes a new cycle must be created. Every new cycle starts with revision 0. If the version of an individual package or dependency library changed, outside of the core packages, a new revision is created. The build is then tagged accordingly;

c<cycle-number>.<revision>

The resulting docker images are tagged similarly. For instance, the image for the MTMount component for cycle 14, revision 3, will receive the name:

ts-dockerhub.lsst.org/mtmount:c0014.003

The first part of the name is the nexus docker registry where we store the deployable artifacts, the second is the name of the image followed by the tag.

In addition, for each cycle the latest revision is tagged with the cycle only, e.g.;

ts-dockerhub.lsst.org/mtmount:c0014

This allows for easily switching back and forth between revisions of a single cycle.

All images are annotated with the version information about the installed packages so one can easily inspect the content by doing:

docker image inspect -f {{.Config.Labels}} ts-dockerhub.lsst.org/mtmount:c<cycle-number>.<revision>

Core packages

The following is a list of the core packages that are used to define a particular cycle.

  • ts_ddsconfig: Contains DDS Quality of Service (QoS) configuration and various sanctioned OpenSplice configuration options for running systems in shared memory, single process and unit testing.

  • ts_xml: Contains the definition of the interfaces of all components in the system.

  • ts_sal: Contains the core DDS communication middleware layer.

  • ts_idl: Contains ancillary files used by ts_salobj and other higher level applications.

  • ts_salobj: High-level Python library to develop CSCs and SAL Script.

Creating a New Cycle or Revision

The following is the procedure used to create and build a new cycle or revision.

Workflow

In general, it is expected that new cycle builds shall be deployed in one of the integration test stands to be tested before rolling to production (e.g. summit). Because the validation process can take some time and since summit environment is in constant need for updates (new revisions), a new cycle can only be considered officially released after the production rollout.

To deal with this process in a more comprehensive way, this repository uses a different workflow than the one adopted by TSSW.

  • For the cycle build we adopt master as the main branch, and also the branch that tracks what is running in the production environment.

  • To start a new cycle, users must create a new branch that, initially, tracks the master branch. The branch name must be named cycle/####. For instance, when starting cycle 21, users will create a branch cycle/0021 that tracks master at the time.

  • This branch should not receive any direct commit. Instead, users should create a “ticket branch”, with the name of the ticket they are working on. Note that the repository is setup so all cycle/* branches are automatically protected against direct commits.

    For instance, if the ticket you created to track the work to build cycle 21 is DM-12345, you will create a tickets/DM-12345 branch, based on the cycle/0021 branch, to work with.

    Once the work is completed, a PR must be issues to merge tickets/DM-12345 to cycle/0021.

    Attention

    Make sure you select the correct cycle branch when opening a PR. By default github will assign the master branch as targets to all PRs. You must manually select the cycle branch in this occasion.

  • If new revisions to the current cycle (say cycle 20) is needed to support the production environment, those changes must be done on ticket branches and merged back to master, as usual.

  • If new revisions to the new cycle are needed, before the new cycle is officially released, they should create ticket branches out of the new cycle branch (e.g. cycle/0021) and PRs must be opened and merged back to the cycle branch.

  • Once the new cycle is deployed at the summit, a PR should be open to merge the cycle branch back to master. Once the PR is merged, the master branch receives a tag with the cycle and revision number (cycle.revision, e.g. c0021.000).

  • From this point on, new PRs will be made directly to master, until a new cycle is created.

Managing the Build

The cycle build is executed in the Telescope and Site Software Jenkins server. Users are required to select the version of the packages that will compose the cycle/revision and then run the build steps in an appropriate order.

Note

At this point, cycle and revision are still managed manually by users. We are investigating ways of automating the process so users don’t have to worry about setting them up.

To work on a new cycle or revision, one would start by cloning/updating the cycle build repository.

If you do not have a local copy of the build cycle repository, clone it with:

git clone https://github.com/lsst-ts/ts_cycle_build.git

You may need to use the ssh version if you have two factor authentication (which you probably should). In this case, do:

git clone git@github.com:lsst-ts/ts_cycle_build.git

To update a local copy do;

cd ts_cycle_build/  # Update the path to match the location of the package in your environment
git checkout master
git pull

If you are creating a new cycle, start by creating the cycle build and pushing it to github. Considering you are starting cycle 21, do;

git checkout cycle/0021
git push

Then, create a ticket branch to work on:

git checkout tickets/DM-12345  # Update the ticket number to match the ticket you are working on

Update the cycle/revision and software versions as needed.

Important

If any of the core packages version is updated, the cycle number must be incremented, otherwise just increment the revision number and update the software versions.

Both cycle, revision and all remaining software versions are managed by an environment file located in:

cycle/cycle.env

At the very top you will find the cycle and revision numbers. Since you know what kind of deployment (new cycle or new revision) you are going to be building, it is advisable to start by updating this information first. After that, proceed to updating the required versions for each package.

For the core packages, the version will be set in agreement with all the other subsystems. Furthermore, one may be interested in updating the DM stack version (lsstsqre) as well. All the other packages can either be inspected in github for the latest version or confirmed with their main developer. In some cases, this process can be a bit time consuming as one needs to verify which version should be deployed with several different sources.

Once cycle/cycle.env is updated, you should be ready to start a build. For that, commit and push your changes. Make sure to describe the changes you have made on the commit message and also update the version history.

Once the changes are pushed to GitHub the branch will appear in the cycle build jenkins job. Select the branch you are working on in the Branch tab and select Build with Parameters on the left-hand side, which will take you to the Jenkins build with parameters page..

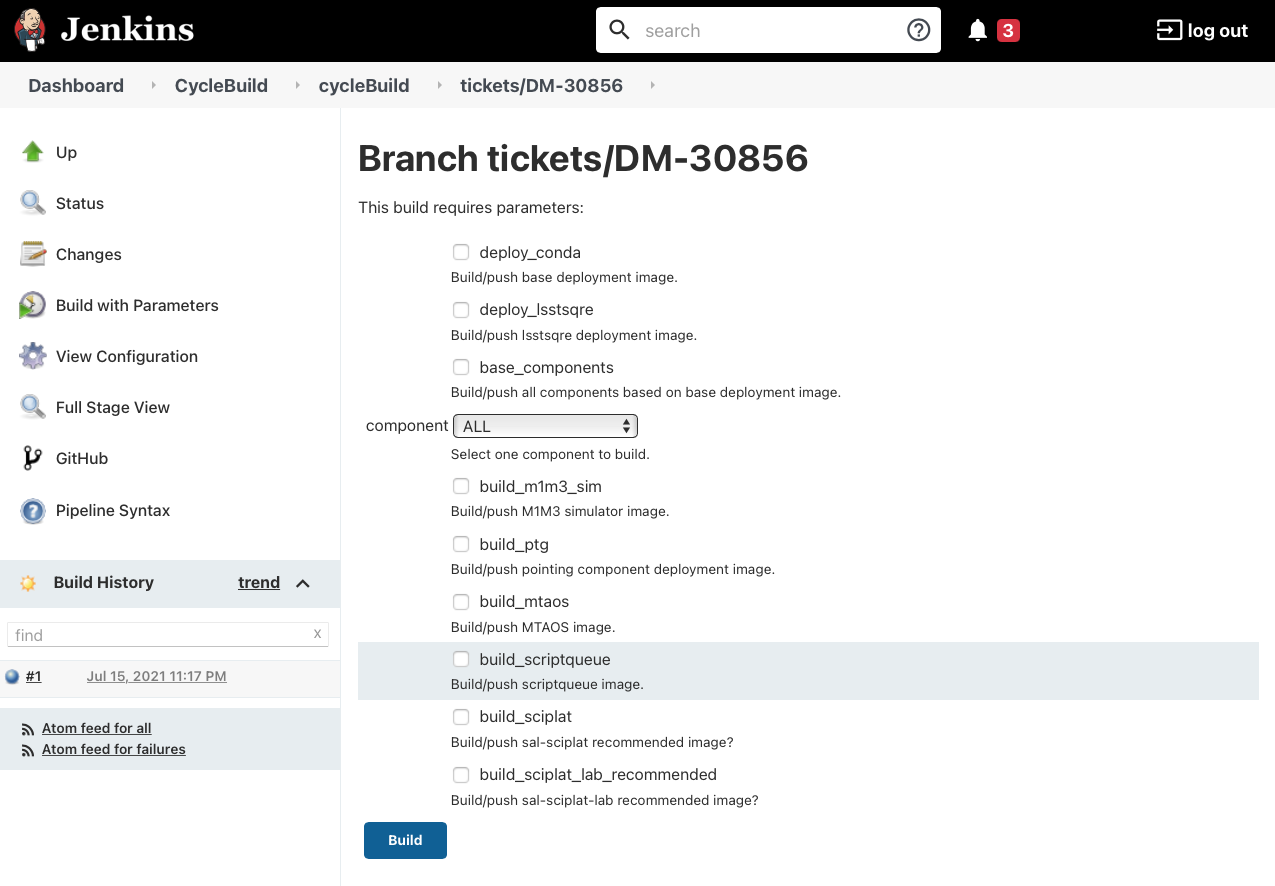

Jenkins build with parameters page

Figure 1 Jenkins build with parameters page.

Build Steps

The build is sub-divided into different steps made to build the system from the ground up. These steps are designed to maximize reusability of docker layers, minimizing the number of layers in the image and reducing the time it takes to build the system. The steps in the build are as follows:

  • deploy_conda: Build base image used by all conda-installable components.

  • deploy_lsstsqre: Build base image used by components that require the DM stack.

  • base_components: Build either ALL or an individual component from conda packages. This includes the following components:

    • adam-sensors

    • ataos

    • atdome

    • atdometrajectory

    • athexapod

    • atmcs_sim

    • atpneumatics_sim

    • atspectrograph

    • dimm

    • dmocps

    • dsm

    • genericcamera

    • love-commander

    • love-csc

    • love-frontend

    • love-manager

    • love-manager-static

    • love-producer

    • mthexapod

    • mtdome

    • mtdometrajectory

    • mtm2_sim

    • mtmount

    • mtrotator

    • ospl-daemon

    • pmd

    • salkafka

    • scheduler

    • watcher

    • weatherstation

  • build_m1m3_sim: Build M1M3 simulator.

  • build_ptg: Build pointing component. Both AT and MT use the same code base and image.

  • build_mtaos: Build MTAOS.

  • build_scriptqueue: Build ScriptQueue. Both AT and MT use the same code base and image.

  • build_salplat: Build base nublado image. This adds the Telescope and Site base layer to a base DM image needed for nublado.

  • build_sciplat_lab_recommended: Builds nublado images. Adds the final layer on the nublado images, needed to make them compatible with nublado system.

It is important to follow the build steps order. Also, we recommend running one step at a time in the Jenkins server, to make sure the image is pushed correctly, avoiding potential push problem at the end.

The build should always start with the base images; deploy_conda and deploy_lsstsqre. Since deploy_conda is quicker to build it is, in general, preferable to start with that one.

Note

The most common issue in building the base images is that the core conda packages are not built yet.

Most notably, the ts-idl package.

It is, in general, required to run the build manually by going to the ts-idl conda package job in Jenkins, selecting the version of ts-idl to build in the “Tags” tab and building it with the appropriate version of ts-xml and ts-sal. Note that this build may also fail if the RPM artifacts are missing. In this case, contact the build team in the ts-build slack channel.

Once both base images are built the system is ready to build the remaining components. Again, given the simplicity and overall time it takes to complete, it is advisable to build the base_components next. This step will build the majority of the systems. Specifically, those that use the deploy_conda and are built from conda packages.

Note

One of the most common issues in building this step is when the selected version of the conda package for a component (or library) is not available. In this case, make sure to check the conda Jenkins build for the particular package. On some occasions developers release the code before all required dependencies are available (in most cases the idl package) and the release build fails. For most cases, rerunning the build in Jenkins (after making sure the dependencies are available) should be enough to fix the problem. If further issues are encountered with the build for that particular package you can either attempt to fix it yourself (most cases are simple pep8 or black formatting issues) or contact the developer in charge of the component and request a patch.

Once the base_components are built successfully the natural next phase is to build MTM1M3 simulator and pointing component, build_mtm1m3_sim and build_ptg, respectively. These are both C++ components built using the deploy_conda base image. In both cases, the SAL libraries are installed using the rpm packages from the nexus server and the components are compiled at build time.

Note

Sometimes it will happen that the RPM package with the library is not available for these components.

This happens mostly when we update the version of OpenSplice. If this is the case contact the build team in the ts-build slack channel.

Note

We do have plans to change how these components are built in the future. The idea is to either build them as conda packages or RPMs. Since the pointing component contains private software and M1M3 is ultimately deployed in an embedded system, it is more likely that RPMs will be used.

The next natural step is then to build the ScriptQueue container, build_scriptqueue job. This image uses the deploy_lsstsqre as a base image and uses eups to install and build the dependencies for the ScriptQueue, which means the step will take some time to finish.

Next, proceed to build the MTAOS component, which is also built on top of deploy_lsstsqre, due to its dependency to the DM stack.

Finally, build the two nublado images, build_salplat first and then build_sciplat_lab_recommended, since the later depends on the former to build.

With this, all systems are ready to be deployed.

The Development Environment

The docker development environment is used is (now) part of the cycle build. This docker image is built on top of the DM stack image (lsstsqre/centos) and contains all (or most) of the software needed for developing software for Telescope and Site stack. The image also ships with the basic Telescope and Site software needed to develop components and SAL Scripts for the ScriptQueue. New packages can be added to the development environment by request. In some cases, adding new dependencies may require some discussion and agreement with team members and acceptance by the Software Architect.

There are mainly three different types of development environment images; master, develop and release cycle/revision tags. The first two tags, master and develop, are updated daily with the lsstsqre/centos:w_latest base image and all the Telescope and Site software using master and develop branches, respectively. This process helps guard the system against potential breakages introduced by changes in any of the packages that are part of the image.

The cycle and revision tag images are built from the versions specified in cycle/cycle.env. They represent a frozen set of the system where all packages are built from tags. For more information see Creating a New Cycle or Revision.

To pull one of these images simply do;

docker pull lsstts/develop-env:<tag>

Where tag can either be master, develop or <cycle>.<rev>. You can check the latest cycle/revision here.

Once the image has been pulled you can verify the version of all the Telescope and Site software in the image by inspecting the image labels. The command is;

docker inspect -f '{{ range $k, $v := .Config.Labels -}} {{ $k }}={{ $v }} {{ end -}}' lsstts/develop-env:<tag>

For master and develop all packages will have labels master and develop, respectively, whereas cycle/revision images will show the packages tags.

In addition to the Telescope and Site software, the development image also ships with a number of packages used for development, for instance, pytest, pytest-asyncio, pytest-black and many others. There are mainly three categories of software provided with the image, yum, conda and pypi packages.

The list of yum packages available in the image are:

  • dos2unix

  • emacs

  • epel-release

  • gdb

  • git

  • gnome-terminal

  • graphviz*

  • ifconfig

  • java-1.8.0-openjdk-devel

  • libgphoto2-devel

  • ltrac

  • mariadb

  • mariadb-devel

  • maven

  • nano

  • ncurses-libs

  • net-tools

  • ntp

  • strace

  • swig

  • tcpdump

  • tk

  • tk-devel

  • tzdata

  • unzip

  • wget

  • which

  • xorg-x11-fonts-misc

  • xterm

In addition, OpenSpliceDDS is also installed using yum from our nexus repo. This library provides the DDS communication middleware, which is the core of all Telescope and Site software. The public image (available in the lsstts docker hub channel), ships with the 6.9.0 community edition version of the library built for el6, to be compatible with the conda environment of the base lsstsqre/centos image.

Note

We have plans to provide a version of this container with the licensed edition of the OpenSpliceDDS library from our private docker registry (ts-dockerhub.lsst.org).

Furthermore, the conda packages available in the image are managed through the ts-develop conda metapackage. The list of packages are:

  • aiokafka

  • astroquery

  • asynctest

  • black ==19.10b0

  • boto3

  • ephem

  • fontconfig

  • ginga

  • gitpython

  • ipdb

  • ipympl

  • jinja2

  • jsonschema

  • jupyter

  • kafkacat

  • lxml

  • moto

  • pre-commit

  • pycodestyle

  • pyqt

  • pytest

  • pytest-asyncio

  • pytest-black

  • pytest-cov

  • pytest-flake8

  • pytest-subtests

  • pytest-tornasync

  • pyyaml

  • setuptools

  • setuptools_scm

  • sqlalchemy

  • wget

Some dependencies that are not available through conda are added with pypi:

  • aiomisc

  • aiounittest

  • confluent_kafka

  • documenteer[pipelines]==0.5.8

  • kafkit[aiohttp]

  • ltd-conveyor

  • pyevents

Finally, the list of Telescope and Site software that are eups installed are:

  • ts_ATDome

  • ts_ATDomeTrajectory

  • ts_ATMCSSimulator

  • ts_config_atcalsys

  • ts_config_attcs

  • ts_config_eas

  • ts_config_latiss

  • ts_config_mtcalsys

  • ts_config_mttcs

  • ts_config_ocs

  • ts_externalscripts

  • ts_hexrotcomm

  • ts_idl

  • ts_observatory_control

  • ts_sal

  • ts_salobj

  • ts_scriptqueue

  • ts_simactuators

  • ts_standardscripts

  • ts_tcpip

  • ts_xml
